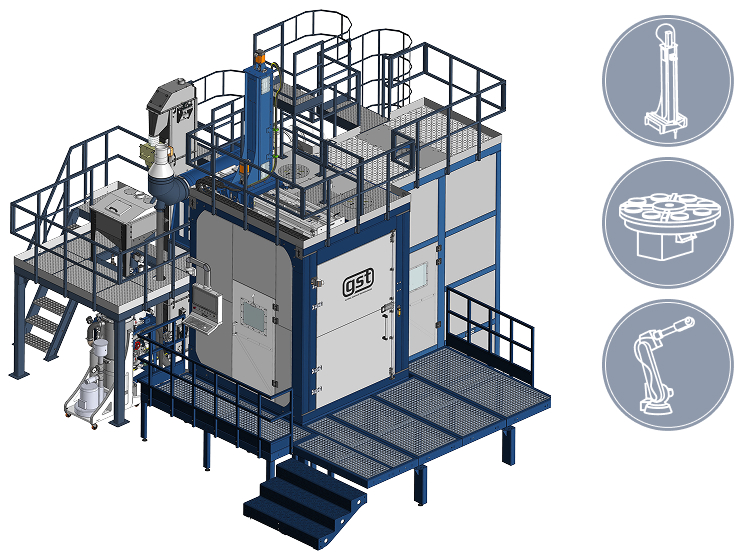

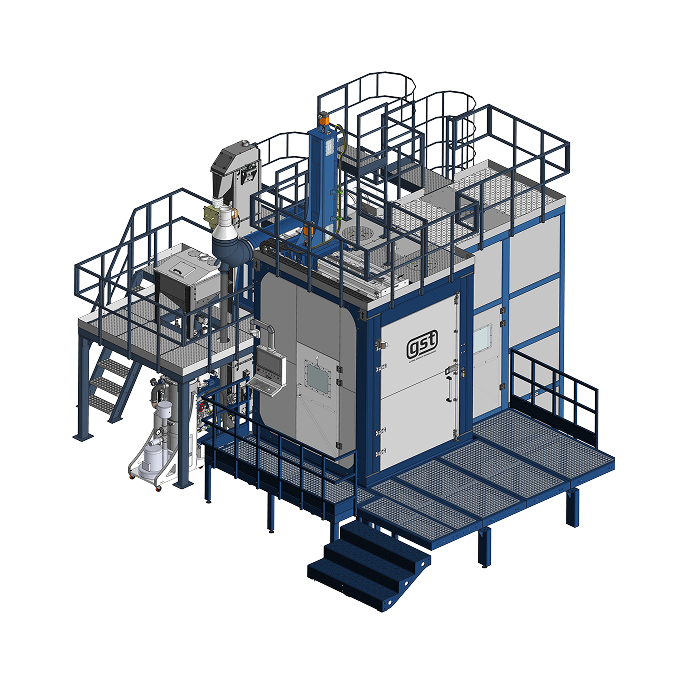

The GST RB 1X10 robotic blasting machine provides a comprehensive solution for surface preparation processes, including removal of existing coatings, corrosion products, and preparation of surfaces for subsequent coating applications.
Powered by advanced process control software, the system allows users to create and store customized blasting programs for different applications. This ensures precise, repeatable, and consistent results while maximizing productivity and improving overall process efficiency.
- AUTOMATED BLASTING SOLUTION COMBINING RELIABLE TECHNOLOGY WITH ADVANCED PROCESS CONTROL
- The GST RB 1X10 robotic blasting machine is a complete solution for surface preparation
applications, including coating removal, rust removal, and surface conditioning prior to the
application of various coating systems.
The system is equipped with advanced process control software that enables operators to create, store, and manage multiple blasting programs. Each program provides consistent and repeatable treatment results for different workpieces, improving process quality, efficiency, and operational reliability.
- GENERAL TECHNICAL SPECIFICATIONS OF GST RB 1X10
-
- Maximum workpiece height: 1800 mm
- Maximum workpiece diameter: 1200 mm
- Maximum workpiece weight: 600 kg
- Blasting media type: Electrocorundum
Equipment Features

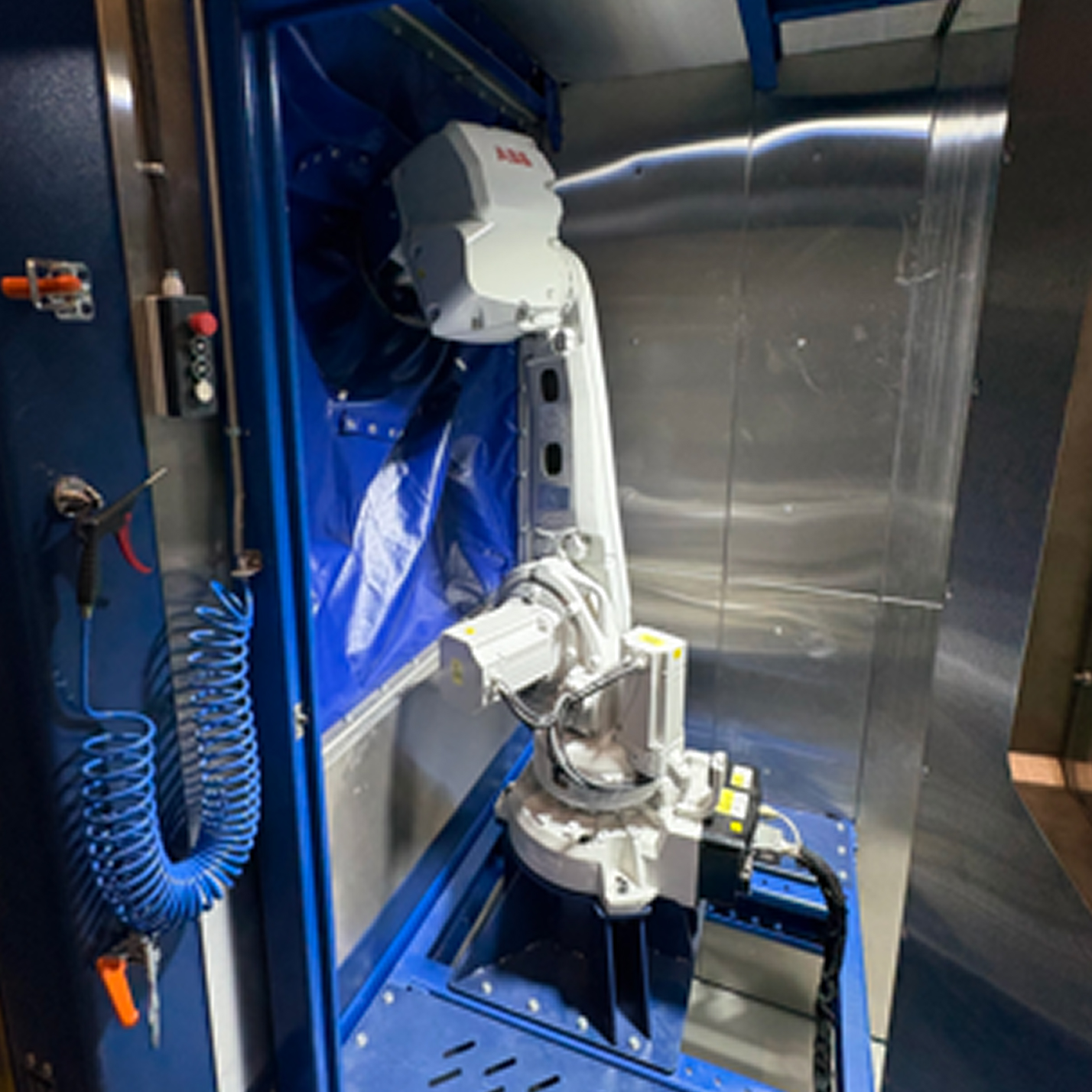

Industrial Robot
The industrial robot provides precise and smooth movement of blasting nozzles relative to the workpiece surface, ensuring stable, repeatable, and high-quality processing results. The robot arm is equipped with a quick-release mounting system that enables fast replacement of standard blasting nozzles with specialized rotary nozzles for processing internal surfaces and complex geometries.
Key specifications:
- Working radius: 1650 mm
- Payload capacity: 20 kg
- Number of axes: 6
- Positioning repeatability: 0.05 mm
- Protective cover: Standard feature
- Quick-release nozzle mounting bracket: Standard feature

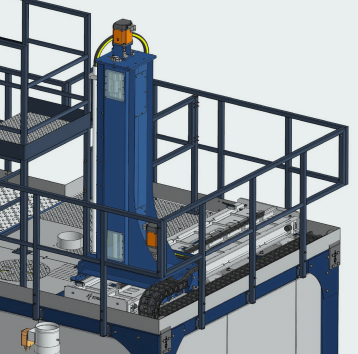

Automatic Vertical Manipulator
The automatic vertical manipulator provides precise movement and positioning of specialized blasting nozzles for processing internal surfaces of workpieces. The manipulator design incorporates high-precision gearboxes combined with servo drives controlled by the robot control system, ensuring accurate and repeatable operation.
Key specifications:
- Number of controlled axes: 2
- Vertical stroke: 1500 mm
- Vertical movement speed: 0–100 mm/s
- Horizontal stroke: 1100 mm
- Horizontal movement speed: 0–100 mm/s
- Positioning accuracy: ±0.1°
- Movement speed control accuracy: 2%
- Limit position sensors: Standard feature

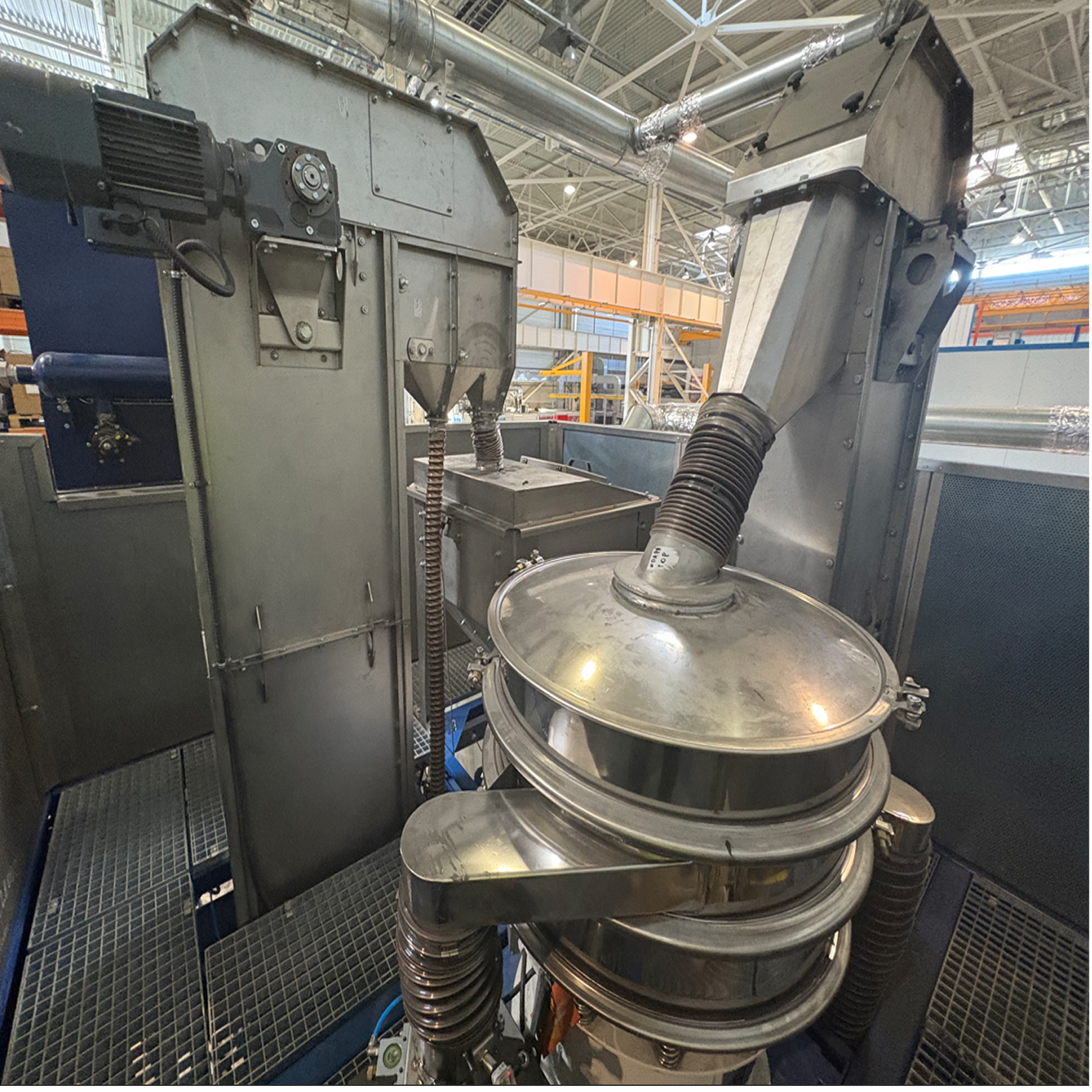

Blasting Media Control, Recovery, and Feed Systems
The blasting media management system ensures continuous media circulation within the machine, precise control of media parameters, and stable delivery of blasting material to the workpiece surface. The system also includes a separation unit for removing foreign particles and maintaining consistent media quality.
Main components:
- Control panel
- Blast generator
- Vibratory classifier
- Spiral separator
- Bucket elevators
- Blasting media flow calibration module

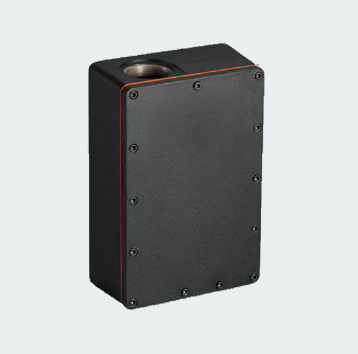

Blasting Media Flow Rate Control
The system is equipped with a high-precision programmable media flow control module that continuously monitors and regulates blasting material consumption during operation. The module automatically adjusts and maintains the required flow rate with an accuracy of 0.5–5%, depending on the type of blasting media used.

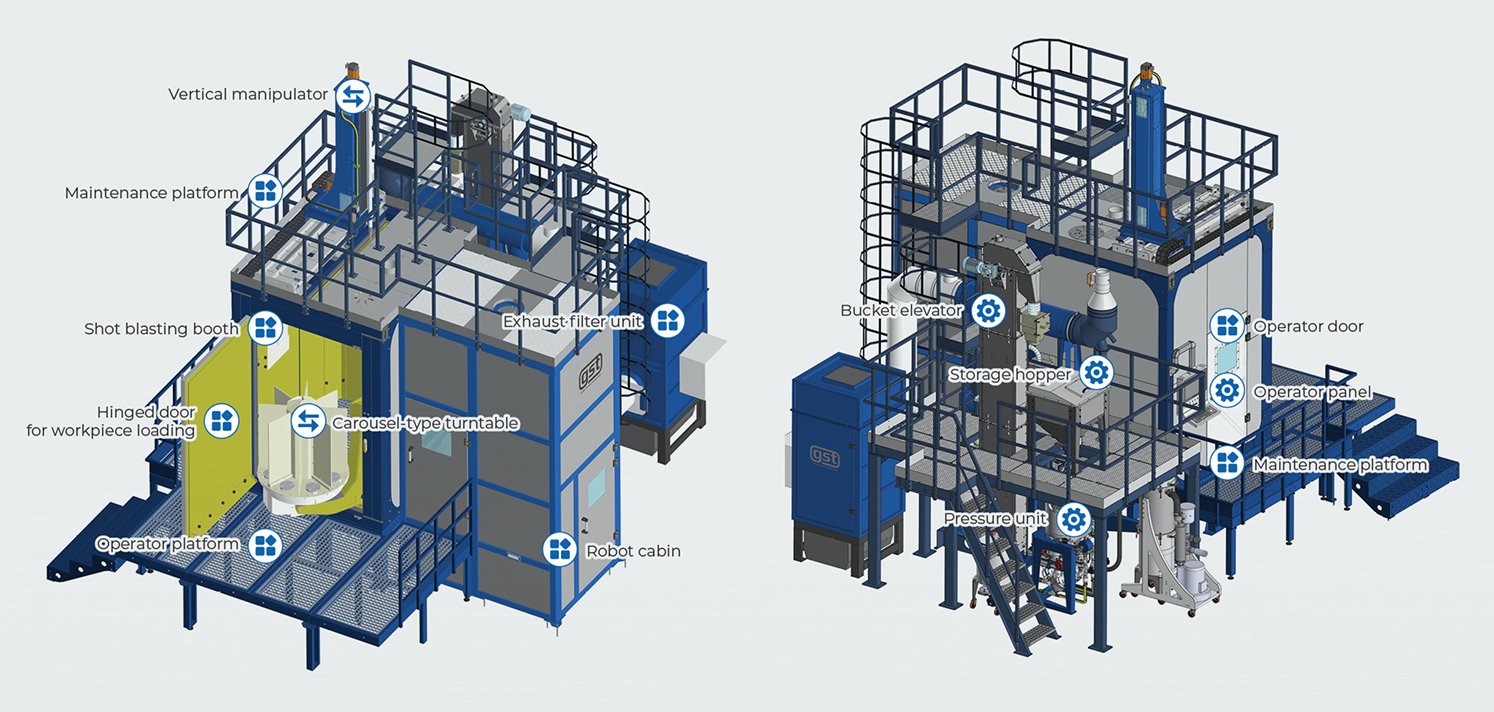

GST RB 1X10 Machine Components
Shot Media Control, Recirculation, and Feed Systems
The system ensures continuous circulation of blasting media within the installation, controls media size and condition, and provides accurate delivery of media to the workpiece surface during the blasting process.
Manipulators
Manipulation systems provide precise movement and positioning of blasting nozzles and workpieces during operation. The selection and configuration of manipulators are optimized according to workpiece geometry, dimensions, and specific process requirements.
Peripheral Components
Peripheral components include all auxiliary systems required for safe, reliable, and efficient operation of the blasting system. They provide a controlled working environment and support stable long-term equipment performance.

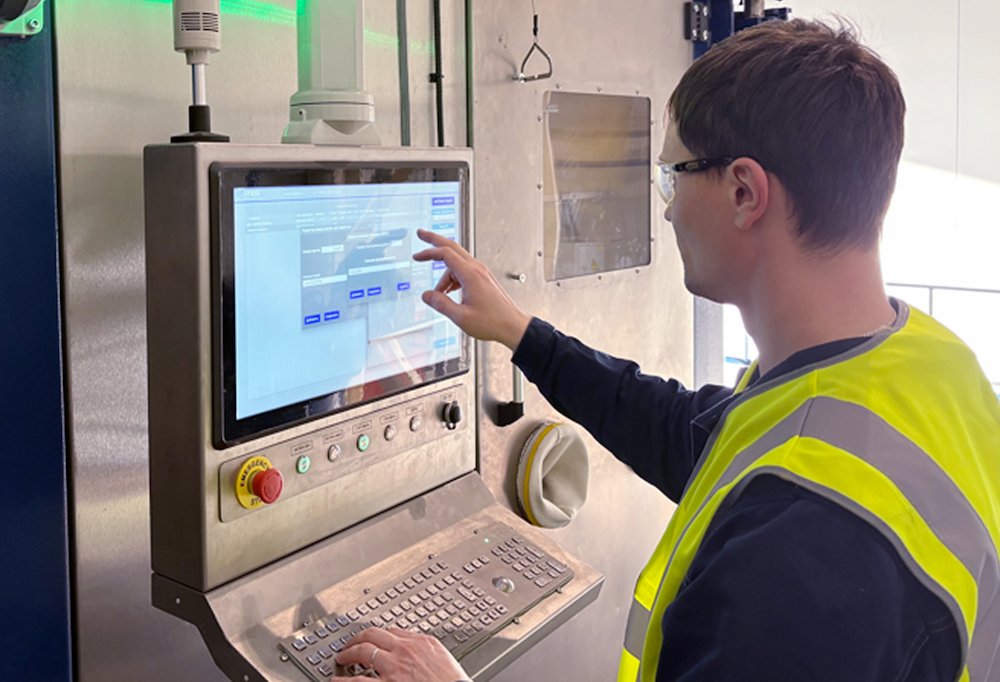

Machine Control Panel
GST RB 1X10 Machine Control Panel
A centralized control panel provides complete management of the shot peening system. It enables operators to create, select, execute, and modify process programs, while providing real-time visualization of shot peening parameters, machine status, and operational alerts.
Key features:
- Industrial-grade color touchscreen operator interface
- Display size 22 inches
- Two mounting options available: suspended arm mounting or independent mobile stand mounting
- Integrated emergency stop buttons

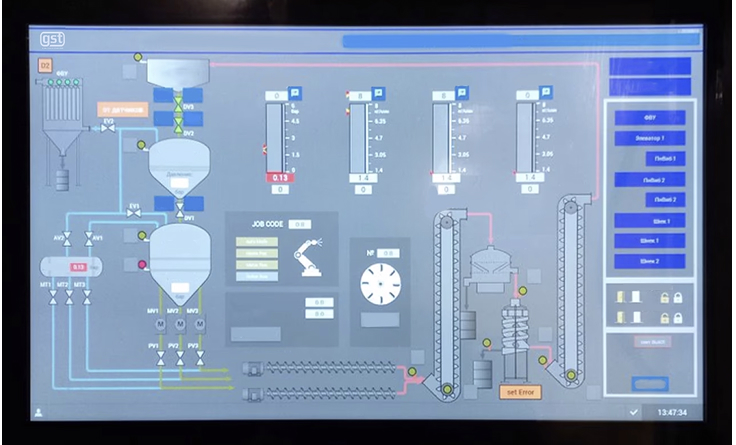

GST BlastIT™ Software
GST BlastIT™ is a professional-grade software platform designed for advanced shot peening process management. It provides engineers and operators with a powerful, flexible, and cost-effective solution for closed-loop process control, real-time monitoring, and comprehensive recording of critical process parameters.
- MAIN SOFTWARE FUNCTIONS
Additional Equipment

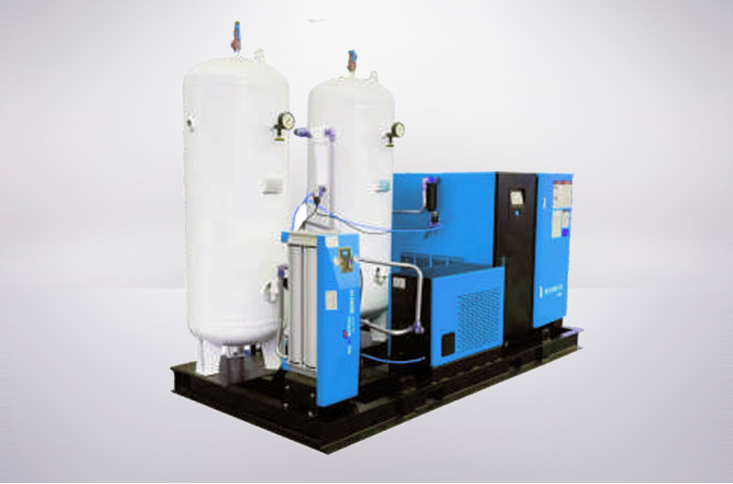

Screw Compressor
Depending on the number of shot peening nozzles and required process performance, the machine may require a significant supply of compressed air. To ensure a stable and continuous air supply, the system can be equipped with a dedicated screw compressor complete with air receivers.
