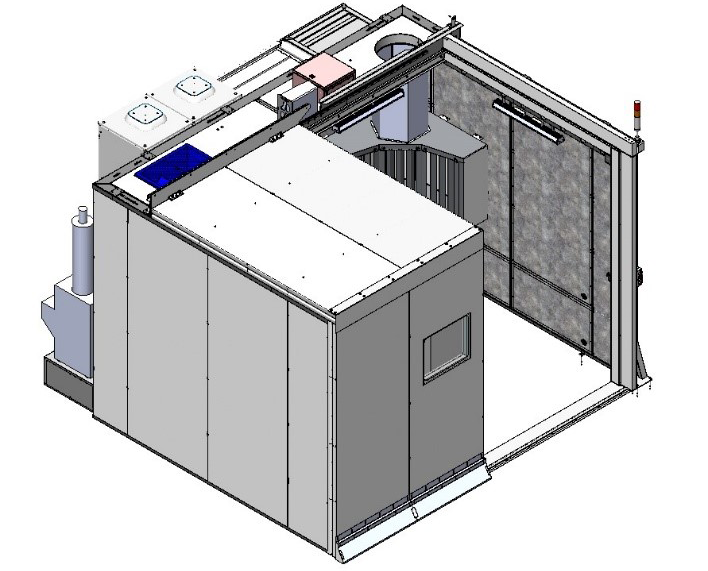

Our cameras are designed as a modular panel construction. Each panel is a multi-layer structure with a filling of sound-absorbing materials of different densities, sandwiched between an outer sheet of stainless steel and an inner lining of perforated steel sheet.
The dimensions, colour and general layout of the chamber are determined individually in accordance with the customer's requirements. Each booth is equipped with an air inlet box with the appropriate capacity and a silencer. Booth can be equipped with a single/double-leaf hinged door or an L-shaped motorized door to facilitate loading of workpieces by overhead crane. All doors are equipped with appropriate seals to ensure low noise levels.
Booth has all the necessary passage openings for exhaust air ducts, electrical wiring, etc.
Technical Specifications
| Spraying process type | plasma spraying, HVOF spraying, flame spraying, electric arc spraying |
| Panels material | stainless steel sheets with sound-absorbing filling |
| Door for workpiece loading | L-shaped automatic/manual hinged door |
| Noise reduction | down to 75 dB |
| Chamber colour | in accordance with customer requirements |
| Chamber dimensions | in accordance with customer requirements |
