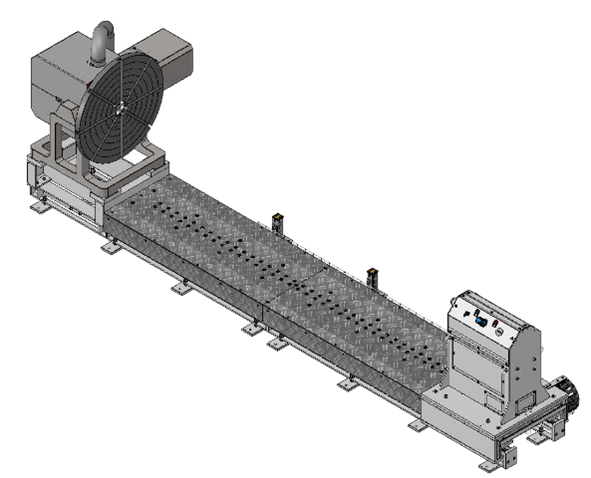

The positioner is designed for operation as a part of automated thermal spray system. This rotary table can be conveniently connected as an additional external axis to an industrial robot.
Technical specification:
- Rotation Speed Accuracy — ±1 rpm
- Positioning Accuracy — ±0,1 deg
- Loading capacity — 500-1,500 kg
- Rotary axis height — 600 mm
- Distance between centers — 200-3500 mm
- Rotation speed — 300 rpm
- Number of axes — 2 (rotation/tilt)
|
Loading capacity, kg
|
500-1,500 |
|
Rotation speed, rpm
|
300 |
|
Number of axes
|
2 (rotation/tilt) |
|
Rotation Speed Accuracy, rpm
|
±1 |
|
Positioning Accuracy, deg
|
±0,1 |
|
Rotary axis height, mm
|
600 |
|
Distance between centers, mm
|
200-3500 |
