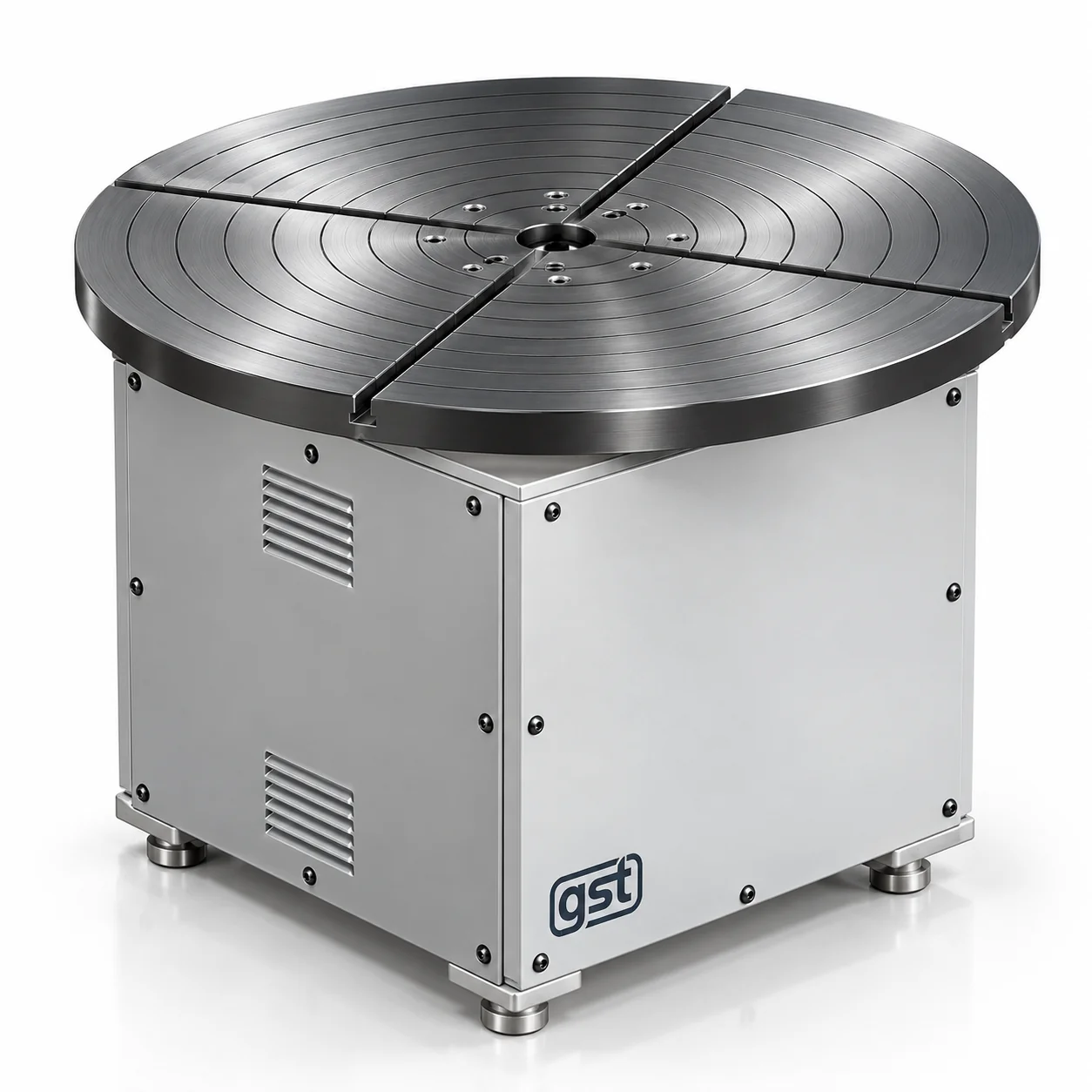

The GST T1X-L Series is a compact 1-axis positioner intended for small-sized, lightweight workpieces in thermal spray applications. The unit provides programmable rotary motion and is designed for processes where controlled workpiece rotation is required without the capacity of a heavy-duty positioner.
The GST T1X-L Series is a compact 1-axis positioner intended for small-sized, lightweight workpieces in thermal spray applications. The unit provides programmable rotary motion and is designed for processes where controlled workpiece rotation is required without the capacity of a heavy-duty positioner.
The current GST product page identifies two operating modes: continuous rotation and indexing. In continuous mode, the workpiece rotates through the coating cycle, while indexing allows the table to move to selected angular positions for sequential treatment of defined surfaces.
Rotation speed is continuously adjustable and can be programmed according to the requirements of the spraying process. This allows the positioner to be adapted to different component diameters, required surface speeds and coating sequences.
The current product page does not publish numerical values for loading capacity, plate diameter, rotation-speed range or positioning accuracy. These parameters should therefore be confirmed with GST for the selected configuration before the positioner is specified for a project.
Key benefits
- Designed specifically for small-sized, lightweight workpieces.
- Two operating modes: continuous rotation and indexing.
- Continuously adjustable rotation speed.
- Programmable speed setting according to spraying-process requirements.
- Compact single-axis architecture for straightforward integration into thermal spray cells.
- Indexing mode supports repeatable orientation of discrete workpiece surfaces.
- Continuous rotation supports circumferential coating of small rotational components.
- Configuration can be selected around the specific workpiece and coating sequence.
System Integration
The T1X-L is intended as a compact rotary workpiece module for thermal spray systems handling small parts. Continuous rotation can be used for circumferential deposition, while indexing can present individual faces or angular positions to the spray gun.
Because the current page does not provide dimensional, load or control-interface details, the final mechanical and automation integration should be defined after confirming the selected T1X-L configuration with GST.
Applications
The T1X-L Series is intended for small, lightweight components that need programmed rotary motion during coating.
- Small cylindrical parts requiring continuous circumferential spraying.
- Components coated at several discrete angular positions.
- Lightweight fixtures carrying small production parts.
- Development and small-part coating stations where programmable rotation is required.
- Processes that alternate between continuous rotation and indexed positioning.
FAQ
Which two operating modes are available on the T1X-L Series?
The current GST page specifies continuous rotation and indexing modes.
How does continuous rotation differ from indexing on this positioner?
Continuous rotation keeps the workpiece turning through the coating cycle, while indexing moves it to selected angular positions for treatment of defined surfaces.
Can the rotation speed be programmed for the spray process?
Yes. GST states that rotation speed is continuously adjustable and can be programmed according to spraying-process requirements.
What type of components is the T1X-L intended to handle?
The product page describes it as a positioner for small-sized, lightweight workpieces.
When is indexing mode particularly useful?
Indexing is useful when separate faces or angular sectors must be presented to the spray gun one position at a time rather than coated during continuous rotation.
Which technical values still need to be confirmed before ordering?
The current page does not publish numerical loading capacity, plate diameter, speed range or positioning accuracy, so these should be confirmed with GST for the required configuration.
|
Number of axes
|
1 (rotation) |
|
Hardware warranty
|
12 months |
|
Equipment type
|
Compact 1-axis rotary positioner |
|
Loading capacity
|
Not published on the current product page - confirm with GST |
|
Plate diameter
|
Not published on the current product page - confirm with GST |
|
Positioning accuracy
|
Not published on the current product page - confirm with GST |
|
Intended workpieces
|
Small-sized, lightweight components |
|
Operating modes
|
Continuous rotation / indexing |
|
Rotation-speed adjustment
|
Continuously adjustable |
|
Programming
|
Rotation speed can be programmed according to the spraying process |
|
Rotation-speed range
|
Not published on the current product page - confirm with GST |
