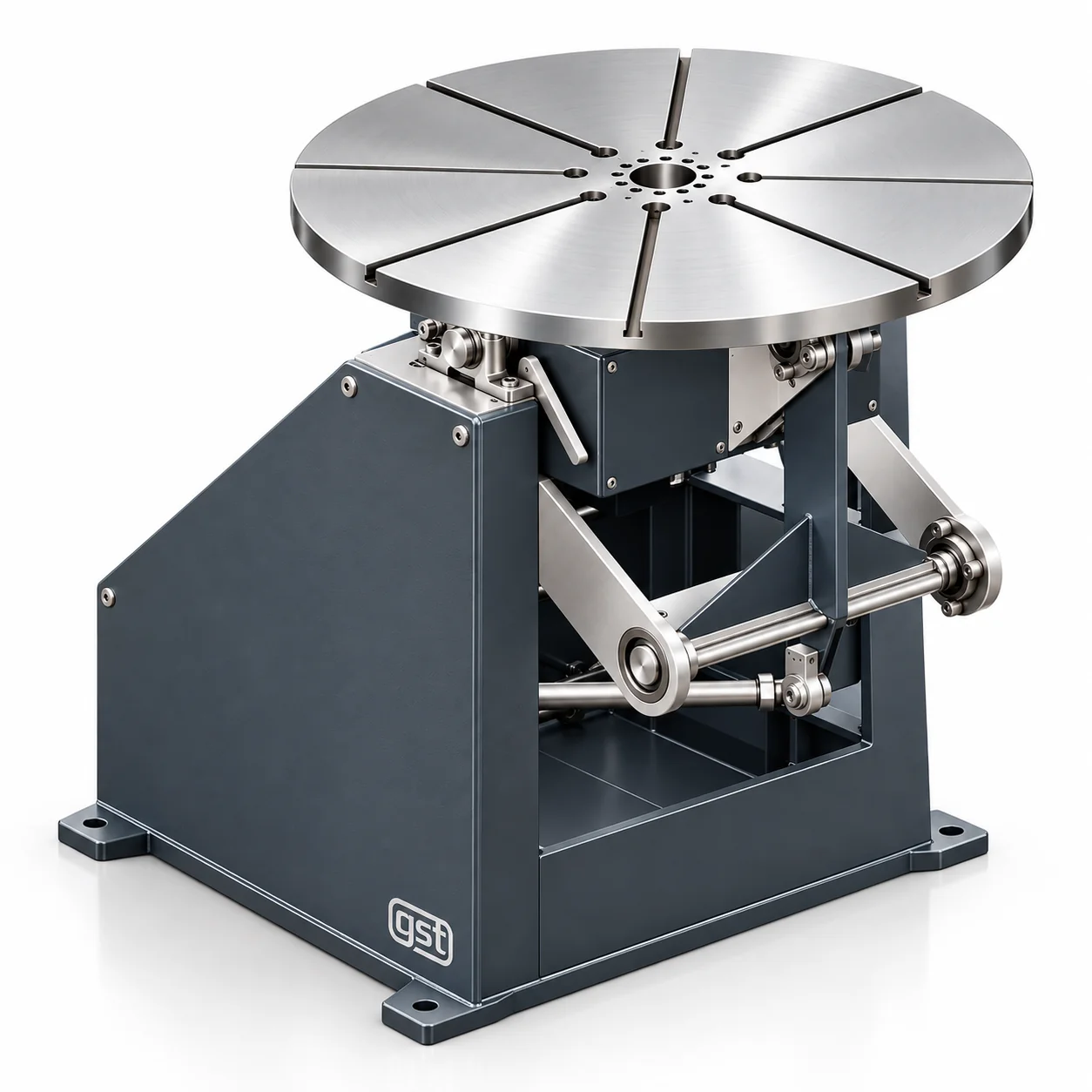

The GST T2X-H Series is an industrial 2-axis workpiece positioner designed for integration into automated thermal spray systems. The unit combines controlled workpiece rotation with a tilting axis, allowing the component orientation to be adjusted relative to the spray gun during coating operations.
The GST T2X-H Series is an industrial 2-axis workpiece positioner designed for integration into automated thermal spray systems. The unit combines controlled workpiece rotation with a tilting axis, allowing the component orientation to be adjusted relative to the spray gun during coating operations.
The positioner is intended to operate as part of an automated coating cell and can be connected to an industrial robot as an additional external axis. Coordinated motion between the positioner and robot helps maintain the required spray angle, stand-off distance and relative surface speed when coating cylindrical, rotational or geometrically complex components.
The T2X-H Series covers a broad range of workpiece sizes and masses. Depending on the selected configuration, loading capacity ranges from 100 to 1,500 kg, table diameter from 500 to 800 mm, and rotational speed up to 300 rpm. The final model should therefore be selected according to workpiece mass, center of gravity, required rotational speed, component envelope and coating process.
In thermal spray applications, accurate workpiece motion is an important part of process repeatability. A suitable positioner allows the spray gun to follow a more stable trajectory while the component is rotated or tilted, supporting more uniform coverage of circumferential, end-face, conical and multi-angle surfaces.
Key benefits
- Two controlled axes: workpiece rotation and tilt for flexible part orientation during spraying.
- Designed specifically for integration into automated thermal spray systems.
- Can be connected as an additional external axis to an industrial robot for coordinated motion.
- Wide series range with loading capacities from 100 to 1,500 kg.
- Rotary table diameters from 500 to 800 mm for different component sizes and fixture layouts.
- Rotation speed up to 300 rpm, depending on the selected configuration.
- Supports repeatable control of spray angle, stand-off distance and relative surface speed when integrated with the coating-cell motion system.
- Suitable for building complete automated coating cells with robots, manipulators, spray booths, extraction systems and process-control equipment.
System Integration
The T2X-H Series is intended to function as a workpiece-motion module inside an automated thermal spray cell. In a typical configuration, the spray gun is carried by an industrial robot or manipulator while the positioner rotates and tilts the component.
When the positioner is integrated as a robot external axis, the cell controller can coordinate gun and workpiece motion so that the coating trajectory follows the component geometry. This is especially useful where a fixed horizontal rotary table would not provide the required spray angle or access to different surfaces.
The exact interface, control architecture, fixtures, guarding and synchronization method are project-specific and should be engineered around the selected robot, workpiece and thermal spray process.
Optional Integration and Cell Equipment
The positioner can be engineered as part of a complete GST thermal spray production cell. Depending on the project, integration may include:
- Industrial robot or dedicated spray-gun manipulator.
- Custom workpiece fixtures, chucks, faceplates or mounting adapters.
- Robot external-axis coordination.
- Spray booth or acoustic enclosure.
- Exhaust and filtration equipment.
- Process-control system and interlocks.
- Component cooling and auxiliary air systems where required by the coating process.
Applications
The T2X-H Series is intended for automated thermal spray tasks requiring controlled rotation and angular positioning of the component. Final suitability depends on component geometry, fixture arrangement, rotational speed, center of gravity and coating-process requirements.
- Rotational shafts, sleeves, rolls and cylindrical components.
- Discs, rings, flanges and end-face coating operations.
- Components requiring both circumferential spraying and angular reorientation.
- Complex parts where robot access is improved by coordinated workpiece tilt.
- Automated plasma spray, HVOF, flame spray and other thermal spray cells where controlled workpiece motion is required.
FAQ
What is the T2X-H Series 2-Axis Positioner used for?
It is designed to rotate and tilt workpieces as part of an automated thermal spray system, allowing the component orientation to be controlled relative to the spray gun.
How many axes does the T2X-H positioner have?
The positioner has two axes: one rotary axis and one tilting axis.
What load can the T2X-H Series handle?
The published series range covers loading capacities from 100 to 1,500 kg. The appropriate configuration should be selected for the actual workpiece mass, center of gravity and fixture.
What table sizes are available?
The published table-diameter range is 500 to 800 mm, depending on the selected configuration.
What is the maximum rotation speed?
The published specification states a rotational speed of up to 300 rpm. Actual available speed depends on the selected positioner configuration and process requirements.
Can the positioner be synchronized with an industrial robot?
Yes. GST states that the positioner can be connected as an additional external axis to an industrial robot for automated thermal spray operation.
Why use a 2-axis positioner instead of a simple rotary table?
The additional tilt axis allows the component angle to be changed during the coating cycle, improving access to surfaces that cannot be presented correctly to the spray gun by rotation alone.
Which thermal spray processes can use the T2X-H positioner?
The positioner is intended for automated thermal spray systems. It can be integrated into coating cells where the process requires controlled workpiece rotation and tilt; the final configuration is selected around the specific spray process and component.
|
Number of axes
|
2 |
|
Hardware warranty
|
12 months |
|
Automation integration
|
Can be connected as an additional external axis to an industrial robot |
|
Primary application
|
Automated thermal spray systems |
|
Equipment type
|
Industrial 2-axis workpiece positioner |
|
Axis functions
|
Rotation / tilt |
|
Loading capacity
|
100-1,500 kg, depending on configuration |
|
Rotary table diameter
|
500-800 mm, depending on configuration |
|
Rotation speed
|
Up to 300 rpm |
|
Workpiece motion
|
Continuous rotary positioning with angular tilt for process orientation |
|
Selection basis
|
Workpiece mass, center of gravity, dimensions, fixture design, required speed and coating process |
