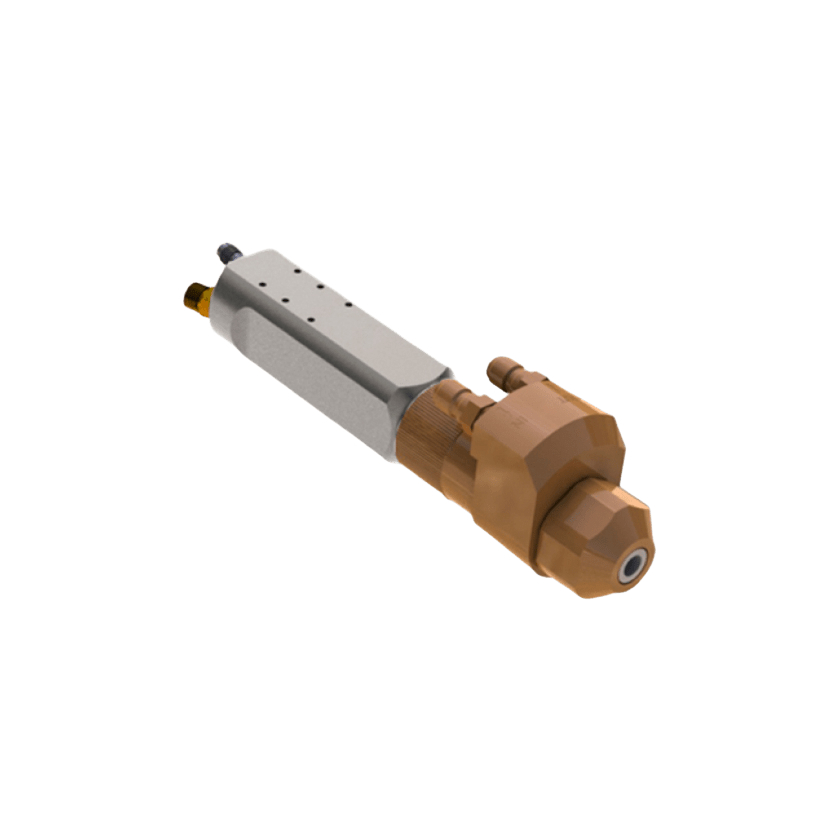

The DJ2600 HVOF (High-Velocity Oxygen Fuel) spray torch is engineered to deposit high-performance coatings from metals, alloys, superalloys, and carbides. Utilizing hydrogen (H₂) as the primary fuel, this system generates coatings with exceptional density, minimal oxide content, high microhardness, and superior bond strength, all while maintaining excellent machinability for post-spray finishing.
The GST DJ-2600 HVOF (High Velocity Oxygen Fuel) spray gun is engineered to deposit high-performance coatings from metals, alloys, superalloys, and carbides. Utilizing hydrogen (H₂) as the primary fuel, this system generates coatings with exceptional density, minimal oxide content, high microhardness, and superior bond strength, all while maintaining excellent machinability for post-spray finishing.
Process Overview
The GST DJ-2600 HVOF operates by combining oxygen, hydrogen fuel, and compressed air to create an ultra-high-pressure combustion flame. This flame ensures uniform heating of the injected spray material, which is then propelled at supersonic velocities through a converging-diverging (de Laval) nozzle. The extreme acceleration forces powder particles to impact the substrate with high kinetic energy, causing plastic deformation and creating a strong metallurgical bond with the base material.
Key Coating Characteristics
Ultra-Low Porosity: Achieves near-theoretical density (<1% porosity).
Minimal Oxidation: Reduced exposure to high temperatures preserves powder chemistry.
Fine Microstructure: Homogeneous grain structure enhances mechanical properties.
High Adhesion: Bond strengths exceed typical thermal spray methods.
Innovative Design Features
Axial Powder Injection: Directs feedstock into the core of the flame, improving deposition efficiency and reducing nozzle wear.
Extended Air Cap: Prevents coating buildup, ensuring consistent spray patterns over prolonged use.
High-Pressure Compatibility: Dedicated gas controllers and powder feeders maintain precise process stability.
Advantages Over Conventional Methods
Compared to plasma or arc spraying, the GST DJ-2600 HVOF’s supersonic particle acceleration (800–1200 m/s) produces coatings with:
✔ Higher density (near pore-free structure)
✔ Better wear/corrosion resistance (critical for aerospace, oil & gas, and industrial applications)
✔ Superior fatigue life (ideal for dynamic load-bearing components)
Applications
WC-Co/Cr coatings for turbine blades, pump seals, and landing gear.
Ni-based superalloys in high-temperature exhaust systems.
Stainless steel & Cu-Ni coatings for marine corrosion protection.
