MP30M-LF Mobile HVOF-LF Spray System
The GST MP30M-LF is a compact, fully integrated mobile liquid-fuel HVOF system developed for high-performance protective coating applications in industrial workshops and field-service environments. The platform combines process control, oxygen and fuel management, high-pressure cooling, powder feeding, electrical control, and system monitoring within a single mobile industrial enclosure.
Characteristics
System type
—
Compact mobile / monoblock HVOF-LF process platform
Installation environment
—
Industrial workshop and field-service use
Control system
—
PLC-based closed-loop process control
Remote diagnostics
—
Remote-access module supported
Process data
—
Acquisition, visualization, reporting, and complete recording
User management
—
Multi-level password-protected access
MP30M-LF Mobile HVOF-LF Spray System
#PROP_TITLE#
—
#PROP_VALUE#
The GST MP30M-LF is a compact, fully integrated mobile liquid-fuel HVOF system developed for high-performance protective coating applications in industrial workshops and field-service environments. The platform combines process control, oxygen and fuel management, high-pressure cooling, powder feeding, electrical control, and system monitoring within a single mobile industrial enclosure.
Designed around the HVOF-LF process, the system supports kerosene-based fuel configurations. Its closed-loop control architecture provides stable management of critical process parameters while the touchscreen HMI, remote diagnostics, process-data recording, and configurable user access support repeatable production and efficient service.
The MP30M-LF can operate as a compact mobile coating workstation or serve as the process core of a larger automated cell. Communication and I/O interfaces allow integration with industrial robots, workpiece positioners, soundproof spray booths, exhaust and filtration units, and other project-specific peripheral equipment.
Key benefits
- Mobile monoblock architecture integrating the principal HVOF-LF process modules in one industrial platform.
- Support for kerosene-based liquid-fuel HVOF configurations.
- Closed-loop control of process gases and critical operating parameters for stable, repeatable spraying.
- Integrated liquid-fuel supply and control architecture for HVOF-LF operation.
- High-pressure cooling-water circulation with continuous process monitoring.
- PLC-based control with graphical touchscreen HMI and real-time parameter visualization.
- Remote-access capability for diagnostics, maintenance, and technical support.
- Process-data acquisition, visualization, reporting, and complete recording for traceability.
- Automation-ready interfaces for robots, positioning systems, filtration equipment, and auxiliary modules.
- Project-specific expansion capability for additional approved HVOF torches and peripheral systems.
System configuration

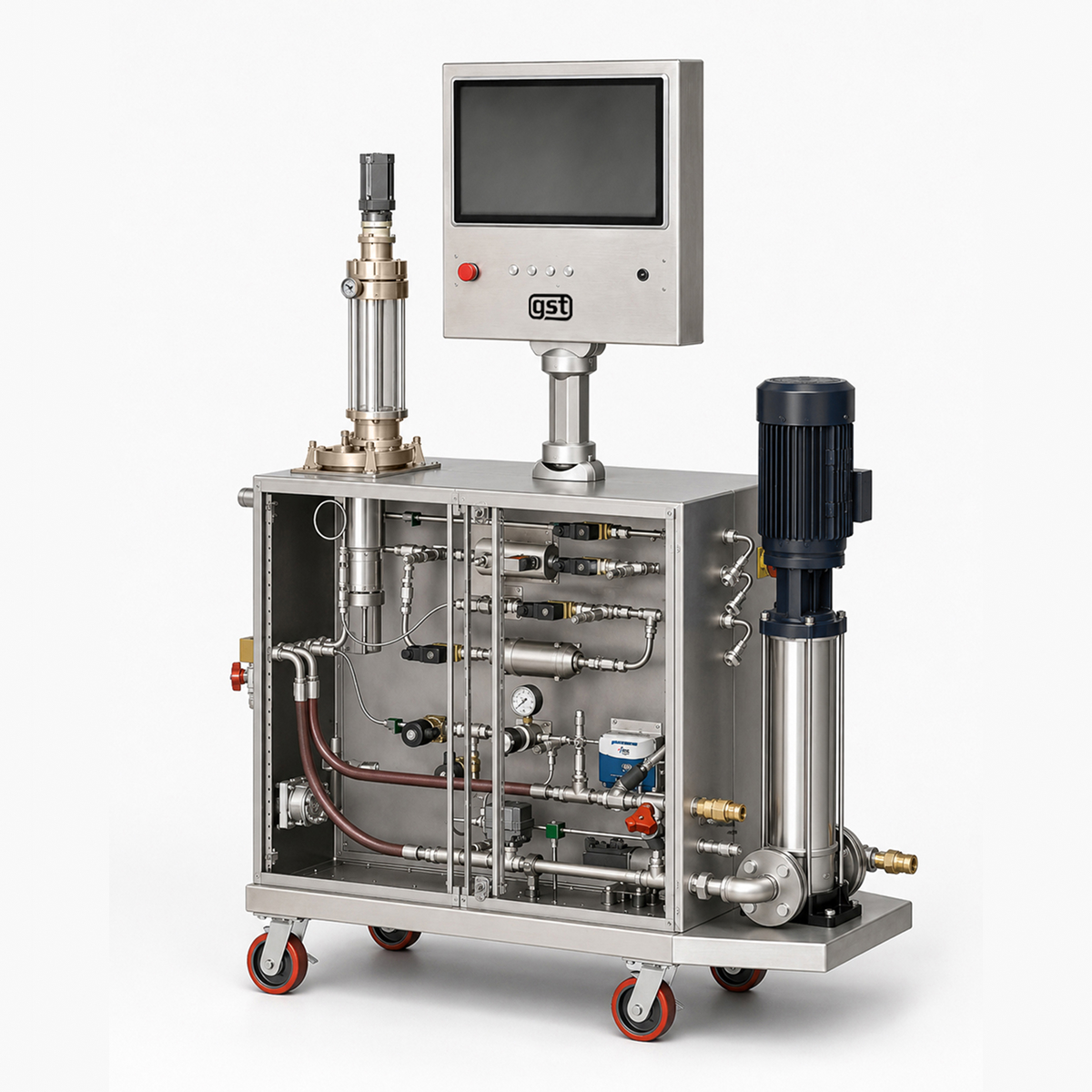

The MP30M-LF is built as a compact mobile HVOF-LF process platform. The current product configuration integrates the principal process, cooling, fuel, powder, and control functions inside one mobile industrial cabinet, while robots, positioners, spray booths, and filtration equipment can be added according to the production task.
- Process Cabinet
- Process Control & Software
- Gas Supply and Regulation Module
- Liquid Fuel Supply Module
- High-Pressure Cooling-Water System
- Control and Distribution Module
- Electrical Control Module
- Powder Feeding System
- Optional / Project-Specific Integration
- Kerosene-Fueled Configuration
- Compatible HVOF Spray Guns
Monoblock
Compact mobile / monoblock HVOF-LF process platform
Process Cabinet

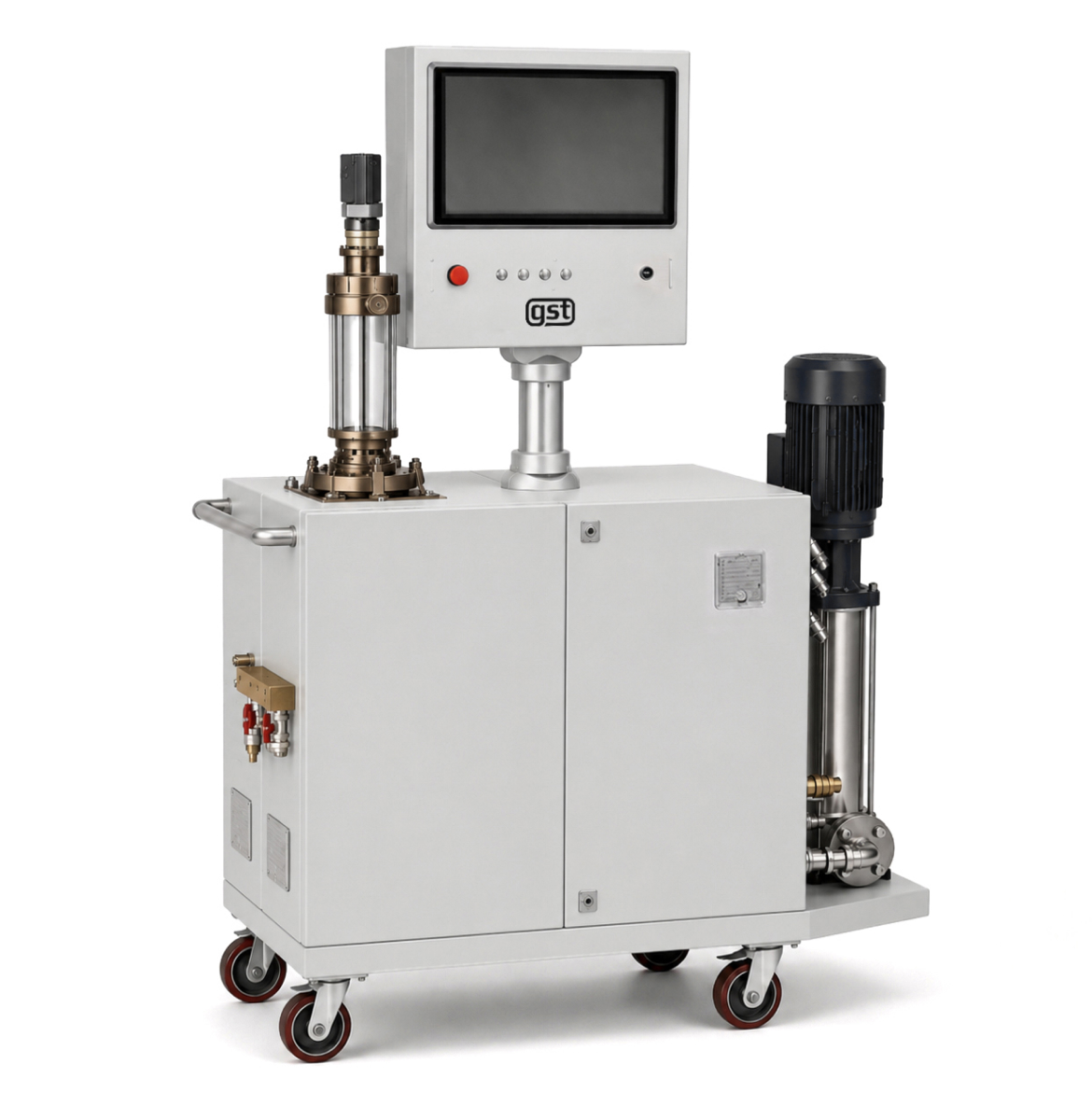

The process cabinet integrates the main HVOF-LF functional modules into a single mobile enclosure. The architecture reduces installation complexity and allows the equipment to be deployed in workshops or field environments while maintaining industrial-grade process control and service access.
PLC-based
Closed-loop process control
Process Control & Software
The MP30M-LF uses a PLC-based control architecture developed for stable HVOF-LF operation, process transparency, and traceability. Critical parameters are monitored continuously and displayed through the operator HMI. Approved operating ranges for each configured torch can be stored in the control system to reduce the risk of operation outside validated conditions.
- Closed-loop management of critical HVOF-LF process parameters.
- Graphical touchscreen HMI for operation, recipe selection, and monitoring.
- Real-time visualization of system status and process values.
- Process-data acquisition, reporting, and complete recording for traceability.
- Multi-level password-protected user access.
- Remote diagnostics and technical-service access.
- Communication and I/O interfaces for robots and external process equipment.
- Expandable software architecture for additional approved HVOF torches and auxiliary systems.
Closed-loop
Mass flow control of process gases
Gas Supply and Regulation Module
The gas module supplies, regulates, and monitors the process gases required for HVOF operation. Accurate gas control directly influences combustion stability, flame velocity, particle acceleration, coating density, and process repeatability. Closed-loop mass-flow regulation is used to maintain consistent operating conditions.
Integrated
Liquid-fuel supply and control system
Liquid Fuel Supply Module
The liquid-fuel module provides controlled delivery of kerosene to the HVOF torch according to the selected system configuration. Fuel supply is coordinated with oxygen flow, ignition, safety logic, and process recipes through the central control system.
High-pressure
Cooling-water circulation with continuous monitoring
High-Pressure Cooling-Water System
HVOF-LF torches operate under high thermal load and require continuous forced cooling. The MP30M-LF incorporates a high-pressure cooling-water circuit with continuous monitoring of the operating conditions required for reliable torch performance.
Oxygen (O₂)
Oxidizer
Control and Distribution Module
This module provides the process interface between the mobile cabinet and the HVOF torch. It manages the high-pressure oxygen circuit, liquid-fuel lines, ignition circuit, cooling-water connections, and auxiliary process interfaces required for stable HVOF-LF operation.
I/O interfaces
Robot integration through communication and I/O interfaces
Electrical Control Module
The electrical module contains the PLC-based hardware and software used to coordinate the complete system. Closed-loop control algorithms supervise critical process variables, while communication and I/O interfaces provide connectivity to industrial robots, filtration systems, workpiece manipulators, and other external equipment.
Rotating-disk
Precision rotating-disk dosing system
Powder Feeding System
The powder feeder uses a precision rotating-disk dosing mechanism for stable and adjustable powder delivery. Powder is transferred into the carrier-gas stream and delivered to the HVOF torch. Carrier-gas flow is regulated by a mass flow controller, while hopper weight is monitored by a strain-gauge load sensor and displayed in real time on the HMI.
Project-specific
Final configuration
Optional / Project-Specific Integration
- Industrial robot or dedicated torch manipulation system
- Workpiece positioner or multi-axis positioning equipment
- Soundproof spray booth
- Exhaust and filtration unit
- Additional process monitoring and quality-control equipment
Kerosene
Supported liquid fuel
Kerosene-Fueled Configuration
The MP30M-LF system architecture supports kerosene-based HVOF-LF configurations. The specific approved torch model, fuel-control parameters, and supporting hardware are selected and confirmed during project engineering according to the required coating process and production conditions.
Compatible HVOF Spray Guns
The MP30M-LF control architecture supports approved HVOF-LF torch configurations with predefined operating limits and validated process ranges stored in the control system. The current configuration is used for the JP5000 liquid-fueled HVOF-LF operation. Additional HVOF-LF torch configurations can be integrated on a project-specific basis after technical confirmation by GST.

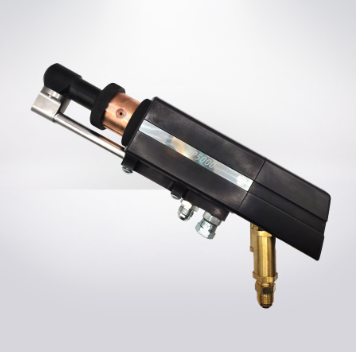

GST JP5000
| Parameter | Value |
|---|---|
| Gas Velocity | 550 – 750 m / s |
| Total Power | 290 kW |
| Cooling Capacity | 90 kW |
| Power in Flame | 200 kW |
| Combustion Chamber Pressure | 6-8 bar |
| Exhaust Flow (Min.) | 15,000 m3 / hr |
| Oxygen | 17–20 bar |
| Nitrogen (Carrier Gas) | 8 – 10 bar |
| Kerosene | 17-20 bar |
Applications
The MP30M-LF is intended for HVOF-LF applications where dense, wear-resistant and corrosion-resistant protective coatings are required together with flexible equipment deployment. Final suitability depends on the coating specification, feedstock, substrate, component geometry, and approved process parameters.
Aerospace

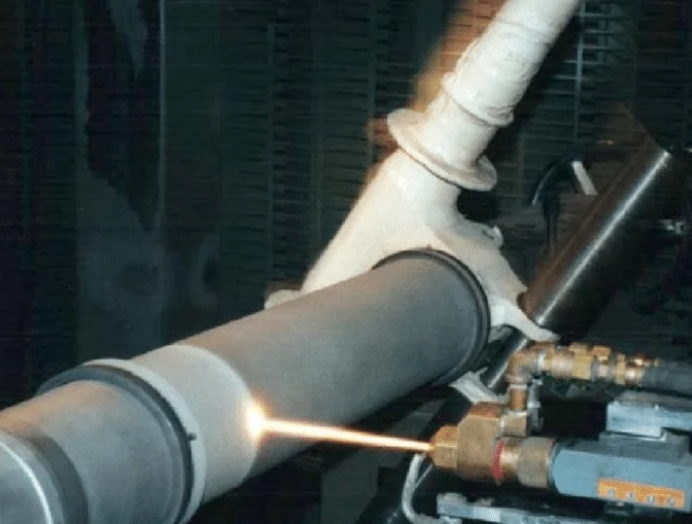

Liquid-fuel HVOF can be used for high-performance carbide and metallic coatings on landing-gear components, turbine-related parts, and other wear-critical aerospace hardware where coating density and repeatability are important.

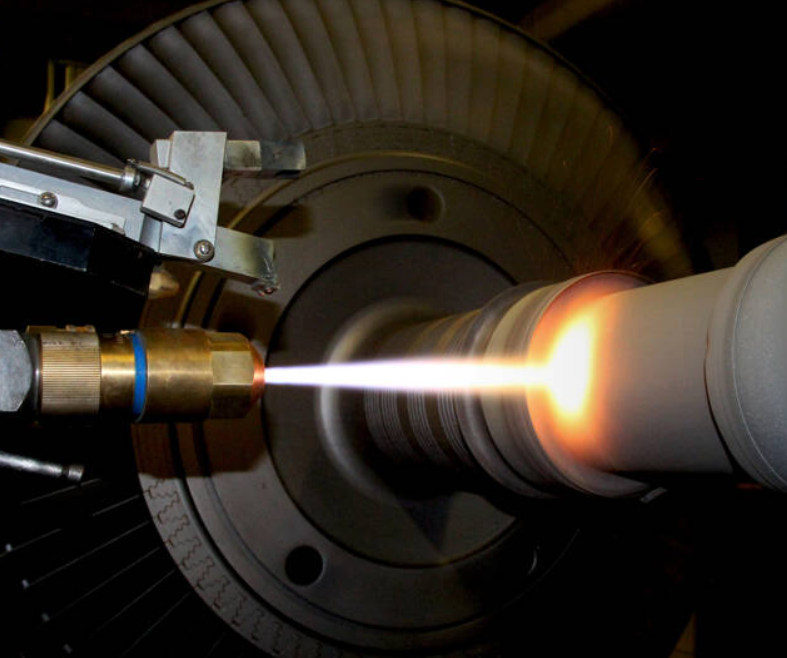

Power Generation
Typical applications include protective coatings for turbine seals, wear rings, boiler-related components, and other parts subject to erosion, wear, or demanding thermal-mechanical service conditions.

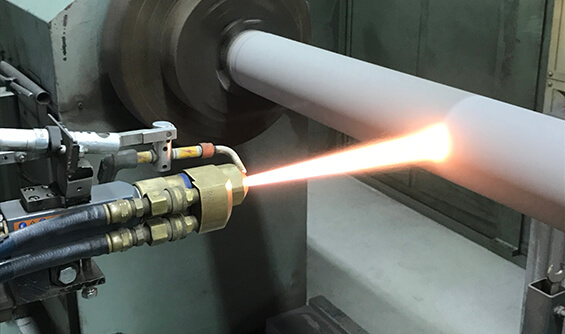

Industrial Repair & Field Service
The mobile architecture is particularly relevant for repair and maintenance work where the HVOF process equipment must be deployed close to the component or moved between workshop areas. Appropriate spray containment, ventilation, filtration, and safety measures remain required.
Automated Production Cells
The MP30M-LF can also be integrated as the process core of a robotic HVOF cell, combining the mobile process cabinet with an industrial robot, workpiece positioner, soundproof booth, exhaust filtration, and additional monitoring equipment.
FAQ
What is the MP30M-LF?
GST MP30M-LF is a compact mobile HVOF thermal spray system designed for on-site coating, repair, and maintenance applications. It integrates the HVOF gun, powder feeding, process-gas control, safety interlocks, and auxiliary circuits into a transportable unit suitable for large or difficult-to-move components.
What operating pressures does the JP5000 need?
For a JP-5000-type liquid-fuel HVOF gun, the exact operating pressure depends on the coating recipe, barrel, powder, and control system. GST MP 3000 HVOF-LF system typical operating pressure for kerosene: 7.5–8.5 bar.
Which HVOF torch is confirmed for the system?
The current configuration supports JP5000 kerosene-fueled operation. Additional HVOF-LF torches may be integrated on a project-specific basis after technical confirmation.
Can the MP30M-LF be integrated with an industrial robot?
Yes. The control system includes communication and I/O interfaces for robotic integration and connection of external process equipment.
What exhaust capacity does the JP5000 cell require?
It should be at least 15000 cubic meters per hour.
What gas velocity does the JP5000 deliver?
The GST JP5000-type HVOF gun produces a supersonic combustion-gas jet of approximately 1,900–2,200 m/s.
Is the MP30M-LF only for field service?
No. It is designed for both industrial workshop and field-service environments and can also be integrated into a larger automated production cell.
Technical Specifications
|
System type
|
Compact mobile / monoblock HVOF-LF process platform |
|
Installation environment
|
Industrial workshop and field-service use |
|
Control system
|
PLC-based closed-loop process control |
|
Remote diagnostics
|
Remote-access module supported |
|
Process data
|
Acquisition, visualization, reporting, and complete recording |
|
User management
|
Multi-level password-protected access |
|
Process-gas control
|
Closed-loop mass flow control |
|
Supported liquid fuels
|
Kerosene, depending on approved project configuration |
|
Oxidizer
|
Oxygen (O₂) |
|
Fuel supply
|
Integrated liquid-fuel supply and control system |
|
Cooling system
|
High-pressure cooling-water circulation with continuous monitoring |
|
Powder feeding
|
Precision rotating-disk dosing system |
|
Carrier-gas control
|
High-accuracy mass flow controller |
|
Powder-level monitoring
|
Strain-gauge load sensor with real-time HMI indication |
|
Process
|
Liquid-Fuel High Velocity Oxy-Fuel (HVOF-LF) |
|
Final configuration
|
Project-specific |
|
Operator interface
|
Graphical touchscreen HMI |
|
Robot integration
|
Supported through communication and I/O interfaces |
|
Peripheral integration
|
Positioners, spray booths, exhaust/filtration and monitoring equipment |
