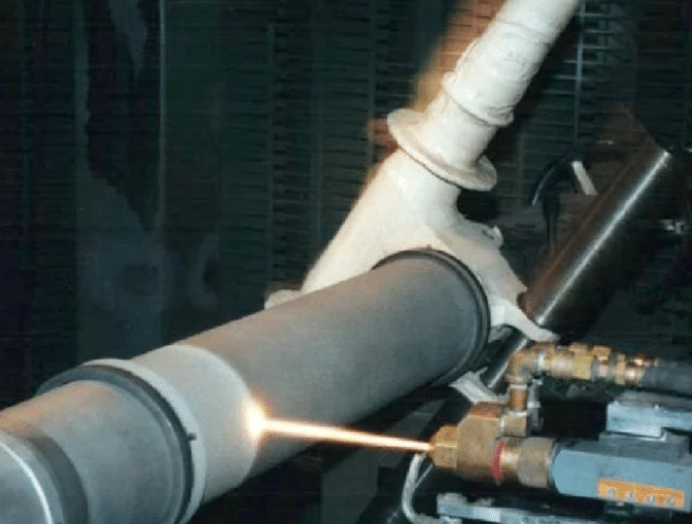

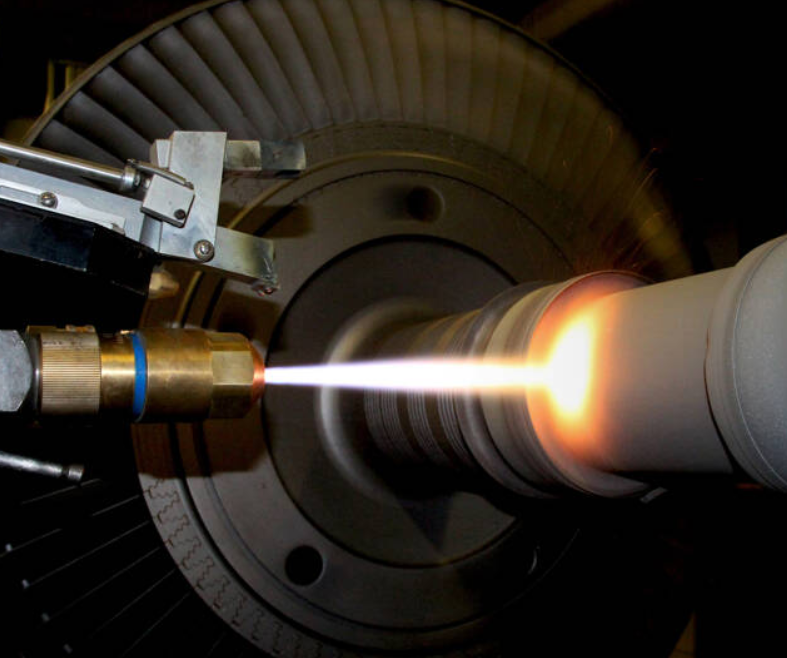

Aerospace
Dense HVOF coatings for landing-gear parts, turbine-related components, engine hardware, and other high-value parts requiring controlled automated deposition and wear or corrosion protection.
MP3000-E ethanol-fueled HVOF spray system
From $500,000
Art. MP3000-E
The MP3000-E ethanol HVOF Spray System is a dedicated industrial platform for liquid-fueled high-velocity oxy-fuel coating. It combines MP 3000 digital process control with a liquid-fuel delivery package and compatible HVOF spray guns for ethanol-based processes.
Characteristics
Cooling monitoring
—
Water flow plus inlet/outlet temperature monitoring at the gun interface
Fuel / oxidizer
—
Ethanol + oxygen (O₂)
Compatible HVOF gun
—
GST Et-Gun
Powder families
—
Metals and carbides
HMI installation versions
—
Hanging-bracket mounting or separate portable stand
Process-gas control
—
High-precision mass flowmeters with digital connection
MP3000-E ethanol-fueled HVOF spray system
From $500,000
Art. MP3000-E
#PROP_TITLE#
—
#PROP_VALUE#
The MP3000-E ethanol HVOF Spray System is a dedicated industrial platform for liquid-fueled high-velocity oxy-fuel coating. It combines MP 3000 digital process control with a liquid-fuel delivery package and compatible HVOF spray guns for ethanol-based processes.
The system coordinates liquid fuel, oxygen, carrier gas, powder feeding, gun cooling, ignition, process programs, diagnostics, safety functions, and connected automation equipment. GST configurations include the Et-Gun with ethanol and oxygen.
Each HVOF-LF system is engineered around the selected gun, coating material, component geometry, production rate, required automation level, fuel-storage concept, and site conditions. The result is a complete liquid-fuel HVOF platform for repeatable and traceable industrial production.
Key benefits
- Dedicated HVOF-LF configuration for liquid-fueled spraying.
- Compatibility with Et-Gun HVOF-LF spray gun.
- Supports ethanol fuel strategies according to the selected gun package.
- Dedicated liquid-fuel pump and separate storage arrangement as part of the HVOF-LF architecture.
- GST MCoat™ software for recipe management, monitoring, diagnostics, data recording, and maintenance functions.
- Powder-feeding architecture supporting up to four independent feed lines in the standard configuration.
- Integrated cooling supervision and dedicated refrigeration for water-cooled HVOF guns.
- Designed for robotic coating systems with robots, positioners, acoustic enclosure, filtration, and safety interlocks.
System configuration
In the HVOF-LF configuration, liquid fuel is stored in a dedicated tank and delivered to the system by a specialized pump, while oxygen and carrier gas are controlled through the process gas architecture. The selected gun determines the approved fuel package: GST Et-Gun with ethanol and oxygen.
The liquid-fuel version therefore has a distinct process architecture that includes fuel storage, fuel pumping, controlled oxygen delivery, powder feeding, cooling, ignition, automation, and site-specific safety engineering. Fuel selection must always remain linked to the approved HVOF gun and qualified process recipe.
Digital
MP 3000 modular digital process control system

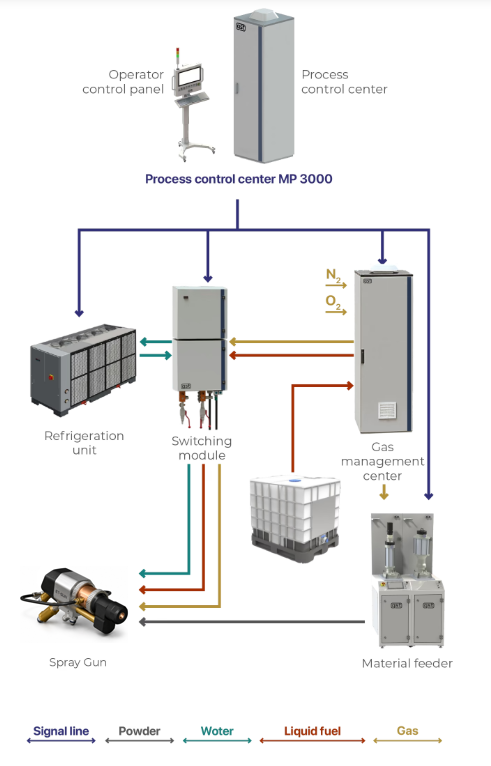

MP 3000 Process Control Center
The Process Control Center coordinates the HVOF-LF system through a digital control architecture and HMI. It manages operating programs, alarms, connected modules, user access, process data, diagnostics, and maintenance information.

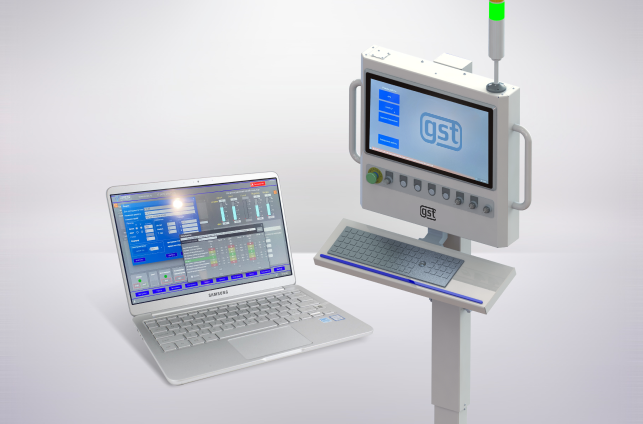

GST MCoat™ Process Control Software
GST MCoat™ is the process-control environment used to operate and supervise the MP3000-E ethanol HVOF platform. It coordinates liquid-fuel delivery, oxygen and carrier gas, powder feeding, gun status, cooling supervision, diagnostics, data acquisition, program management, and external-module integration.
For liquid-fueled HVOF production, stored operating programs and controlled user access are especially important because the qualified process window is linked to the selected gun and fuel package.
Main software functions
- Graphical operator interface with visualization of process parameters.
- Spray-gun library for the configured HVOF gun and associated operating data.
- Remote diagnostics via VPN connection.
- Saving, recalling, running, and editing process programs.
- Monitoring and control of external modules such as robots, exhaust filtration, and refrigeration equipment.
- Multi-level access for Operator, Process Engineer, and Service Engineer roles.
- Online monitoring and recording of current process parameters.
- Maintenance planning and resource-consumption accounting.
Mass flowmeters
High-precision, with digital connection
Gas Management Center
The Gas Management Center regulates oxygen, carrier gas, and other configured gases while interfacing with the liquid-fuel delivery package. Features include high-precision mass flowmeters, in-line pressure regulators, pressure transmitters, gas microfilters, and stainless-steel tubing and fittings.
Ethanol + O₂
Et-Gun fuel / oxidizer
Liquid Fuel Pump and Storage System
HVOF-LF operation uses a dedicated liquid-fuel pump and a separate storage tank for the approved fuel. GST configuration places the tank in a separate room and supplies fuel to the Gas Management Center through the specialized pump. The final installation must be engineered for ethanol, the selected gun, site layout, and applicable safety requirements.
Gun interface
Gun utilities, cooling-water monitoring, ignition
Switching Module
The Switching Module provides the interface between the process system and the selected JP5000 or Et-Gun spray gun. It manages gun utilities, cooling-water monitoring, ignition, and process connections required by the configured gun package.

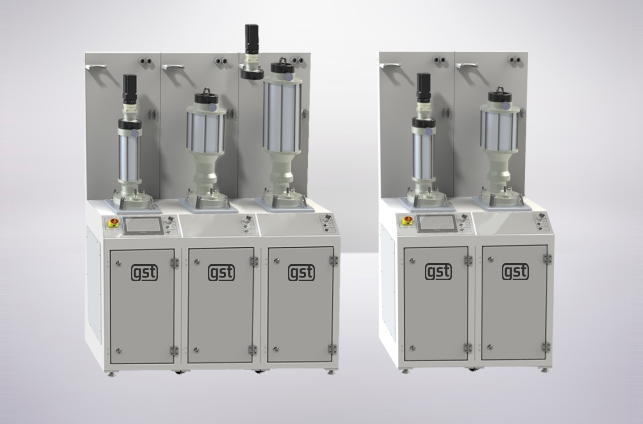

Powder Feeder
The powder feeder transports coating powder to the gun using carrier gas. The standard architecture can support up to four independent powder feed lines, with volumetric feeding, optional gravimetric control, 1.5 L or 5 L hoppers, heating, agitation, quick-change hoppers, and powder-level monitoring.
Forced-water
Cooling with dedicated refrigeration unit
Refrigeration Unit
Liquid-fueled HVOF guns operate under high thermal load and require reliable forced-water cooling. The refrigeration unit is selected to maintain stable cooling conditions for the configured gun throughout the coating cycle.
Robots + positioners
Industrial robots, gun manipulators, workpiece positioners
Manipulators and Positioners
Industrial robots, dedicated gun manipulators, and workpiece positioners control the relative motion between the HVOF gun and the component, maintaining spray distance, angle, traverse speed, and trajectory.
Booth + filtration
Soundproof spray booth; exhaust and filtration unit
Peripheral Equipment
A complete HVOF-LF cell can include a soundproof spray booth and exhaust/filtration unit. HVOF spraying generates high noise, heat, dust, and overspray, so engineered acoustic enclosure and extraction are integral to industrial installation.
Compatible HVOF Spray Guns
The MP3000-E ethanol HVOF configuration supports liquid-fueled HVOF gun packages. The current GST product configuration supports Et-Gun for ethanol-fueled operation.
Et-Gun

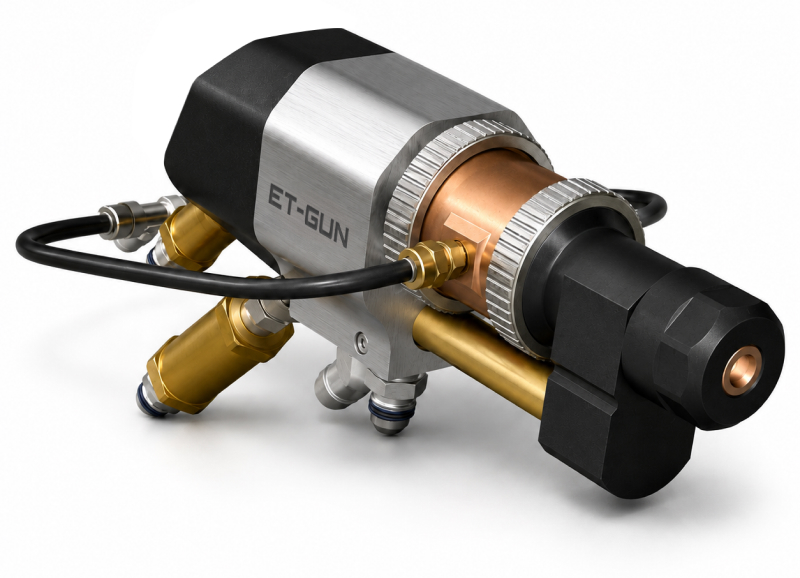

The GST Et-Gun is a liquid-fuel HVOF torch optimized for ethanol-based operation. Its combustion chamber is designed to operate at elevated pressure of approximately 13 bar, generating a high-velocity supersonic jet for efficient particle acceleration. The configuration is intended for producing dense protective coatings with high bond strength, low porosity, and high microhardness.
| Parameter | Value |
|---|---|
| Fuel | Ethanol |
| Oxidizer | Oxygen (O₂) |
| Approx. combustion pressure | 13 bar |
| Spray deposition rate | 60–170 g/min |
| Cooling water pressure | 10 bar minimum / 15 bar recommended |
| Cooling water inlet temperature | 10–21 °C |
| Cooling water flow rate | 28–35 l/min |
| Maximum oxygen flow rate | 700 Nl/min |
| Maximum ethanol consumption | 40 l/h |
| Maximum nitrogen carrier gas flow | 20 Nl/min |
Applications
The MP3000-E ethanol HVOF is a configurable liquid-fueled HVOF coating platform. Final suitability depends on the coating specification, powder, substrate, selected Et-Gun process, component geometry, qualification requirements, and production rate.
Oil & Gas
Protective coatings for valve components, pump shafts, drill tools, seals, and other parts exposed to abrasion, erosion, corrosion, or combined wear mechanisms.
Power Generation
HVOF processing of turbine seals, wear rings, rotating equipment, and other components where surface durability and coating repeatability are important.

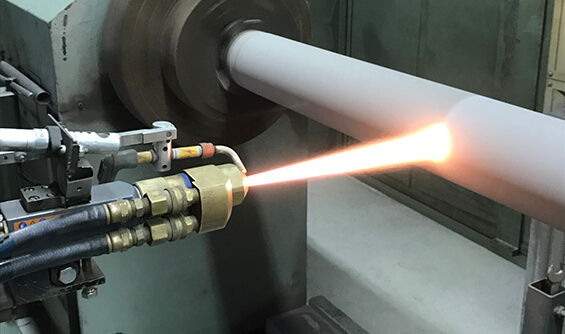

Heavy Machinery and General Industry
Wear-resistant coatings for hydraulic rods, extrusion screws, mining components, rolls, shafts, and other industrial parts subjected to sliding, abrasive, or erosive wear.
Marine and Corrosion Protection
Metallic and alloy coating applications for components requiring improved corrosion resistance in aggressive or marine environments.
Carbide and Metal Coatings
The Et-Gun is used with metal and carbide powders, supporting wear-resistant and corrosion-resistant coating systems subject to process qualification.
FAQ
What is the MP3000-E ethanol HVOF Spray System?
The GST MP 3000 HVOF-LF Ethanol Spray System is a stationary industrial liquid-fuel HVOF thermal spray platform using ethanol as the fuel. It is designed for automated and robotic production of dense, high-performance coatings with precise control of fuel, oxygen, powder feed, cooling, and process safety.
A typical system includes the MP 3000 process control center, ethanol supply and metering module, oxygen control, powder feeder, HVOF spray gun, cooling system, ignition and safety interlocks, plus interfaces for robots, manipulators, positioners, spray booths, and extraction equipment.
Which HVOF spray guns are used with the HVOF-LF Ethanol configuration?
The current GST MP 3000 HVOF Ethanol configuration works with Et-Gun liquid-fueled HVOF gun.
What spray rate does the Et-Gun achieve?
The GST Et-Gun is specified with a spray deposition rate of 60–170 g/min, depending on the powder, particle size, process recipe, and coating requirements.
What cooling water does the Et-Gun need?
For the GST Et-Gun ethanol-fueled HVOF configuration, the cooling-water requirements should be specified approximately as follows: water quality <50 ppm; water inlet pressure10–15 bar.
What combustion pressure does the Et-Gun operate at?
The Et-Gun operates at combustion chamber pressures up to 13 bar (188 psi). This is roughly 3–5 bar higher than conventional kerosene HVOF systems, which contributes to higher flame and particle velocities.
Are all HVOF-LF process parameters fixed?
No. Fuel flow, oxygen flow, powder feed, utility consumption, and other operating values must be defined for the actual Et-Gun coating process and project configuration.
Technical Specifications
|
Cooling monitoring
|
Water flow plus inlet/outlet temperature monitoring at the gun interface |
|
Fuel / oxidizer
|
Ethanol + oxygen (O₂) |
|
Compatible HVOF gun
|
GST Et-Gun |
|
Powder families
|
Metals and carbides |
|
HMI installation versions
|
Hanging-bracket mounting or separate portable stand |
|
Process-gas control
|
High-precision mass flowmeters with digital connection |
|
Gas pressure control / monitoring
|
In-line regulators and gas pressure transmitters |
|
Gas-line construction
|
Stainless-steel pipes and fittings with gas microfilters |
|
Hopper design
|
High-pressure |
|
Powder-feeder options
|
Hopper heating, powder agitation, quick-change system, powder-level monitoring |
|
Cooling
|
Forced-water cooling with dedicated refrigeration unit |
|
Process noise reference
|
Approximately 130 dB; enclosure and acoustic protection required for industrial operation |
|
Hardware warranty
|
12 months |
|
Compatible fuels
|
Ethanol, depending on selected gun |
|
Liquid-fuel capability
|
Dedicated liquid-fuel pump and separate fuel-storage arrangement |
|
Automation integration
|
Industrial robots, gun manipulators, workpiece positioners, peripheral modules |
|
Peripheral equipment
|
Soundproof spray booth; exhaust and filtration unit |
|
Process
|
High Velocity Oxy-Fuel, liquid-fueled (HVOF-LF) |
|
Final configuration
|
Engineered according to process task, selected gun, workpiece geometry, coating material, production requirements, and customer specification |
|
Operator interface
|
Color touchscreen HMI, diagonal up to 21 in |
|
Control software
|
GST MCoat™ |
|
Control platform
|
MP 3000 modular digital process control system |
|
Powder feeder type
|
Volumetric; optional gravimetric powder-feed control in g/min |
|
Hopper volume
|
1.5 L or 5 L |
|
Powder feed lines
|
Up to 4 independent feed lines in standard system architecture |
|
Powder hoppers
|
1 / 2 / 3 / 4 hoppers |
